Limited time only: Save 20% when purchasing this system
Click for details

Ideal sytem for: cytochrome potential 96 well plates micro test tubes serum cups capillary tubes NMR tubes microcentrifuge tubes studies of cytochromes

The ArrowDOXTM Oxidation-Reduction Potential System is the ideal system for these applications for the following reasons:

• MEASURE OXIDATION-REDUCTION POTENTIAL IN 1/10 OF A DROP. This electrode enables you to measure samples as small as 5 micro liters (1/10 of a drop)
• EXTREMELY SMALL SENSOR SIZE. Tip diameter of the ArrowDOXTM electrode is only 1mm.
• LOW IMMERSION DEPTH. Immersion depth for the ArrowDOXTM micro combination redox electrode is 0.5 mm.
• GUARANTEED UNBREAKABLE. Electrode features solid state sensor and fluoropolymer capillary tube making it virtually unbreakable. Electrode is guaranteed against breakage for the life of the probe. Why settle for glass?
• MORE STABLE THAN GLASS ELECTRODES. The solid state design of the probe offers a much lower output resistance than glass probes of the same size giving a much more stable redox reading.
• MEASURE MIDPONT POTENTIAL OF CYTOCHROMES by simultaneously measuring the oxidation-reduction potential while at the same time measuring the spectrophotometric absorption during a reductive potentiometric titration of cytochrome
• PLOT REDOX POTENTIAL CONTINUOUSLY ON YOUR PC. Monitor the change in oxidation-reduction potential with time directly on your PC and see a real time curve as the potential changes. Ideal for measuring the midpoint potential of cytochromes.
• TABULATE OXIDATION-REDUCTION POTENTIAL VALUES ON YOUR PC. Dip the micro redox electrode into a 96 well plate and record oxidation-reduction potential value on your PC while at the same time keying in the sample ID. Go to next well and repeat procedure. Get complete redox potential record of as many as thousands of individual samples.

APPLICATION AREAS

• Biotechnology
• Biological sciences, medicine & physiology
• Pharmaceuticals
• Radioactive samples
• Isoelectric focusing gels
• LC & HPLC
• NMR samples
• Environmental studies

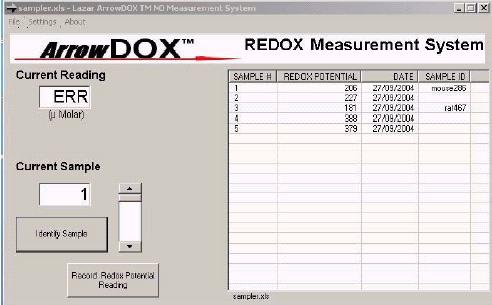

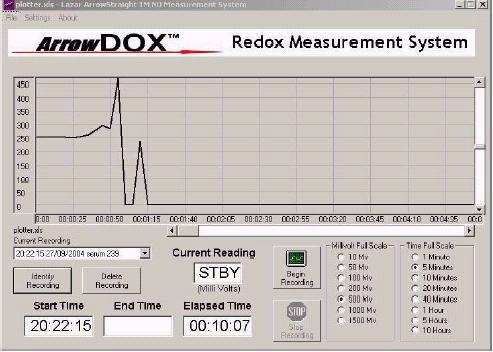

Sample ArrowDOXTM Microsoft WindowsTM Screenshots:
