Dissolved Oxygen Probes
- Dissolved Oxygen Probe - Measure DO or BOD with your pH meter
- NEW pO2 & pCO2 Micro Electrodes
- NEW pO2 Needle Probe
- Micro Flow Through CO2 & pCO2 Electrodes
Enter your email address here:

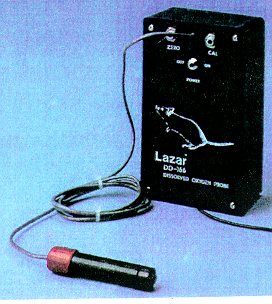

Dissolved Oxygen Probe
Measure dissolved oxygen using your pH meter
Features
- Use with any pH Meter. Probe can be plugged directly into any standard pH meter for dissolved oxygen measurements.
- Covers Full DO Range. Electrode can measure dissolved oxygen from 0 to 20 ppm or 0 to 150% saturation.
- Eliminates Winkler Method. Probe measures dissolved oxygen directly without involved wet chemistry of titrations needed with the Winkler method.
- BOD Measurements. BOD probe fits directly into BOD bottle for 5 day or continuous BOD measurements.
- Portable. On-the-spot field measurements of dissolved oxygen can be made without a trip back to the laboratory.
- Rapid Response. Typical response time at room temperature is 12 seconds.
- Use for both BOD measurements in the LAB and for Field use.
Specifications
| Oxygen Range: 0 to 20 ppm dissolved oxygen |
| Accuracy: +/- 0.2 ppm at calibration temperature |
| Temperature Range: 0 to 50 degrees C |
| RESPONSE TIME: Response time at 25 C is 12 seconds for 90% of reading. |
| Connector: Available in either U.S. standard or BNC connector (please specify when ordering). |
| Power: 9 volt disposable battery. |
| Sample Size: Minimum sample size is about 2 ml. |
Ordering Information
DO-166 Oxygen Probe
DO-166 Oxygen electrode including spare membranes and bottle of filling solution. Can be used for both BOD and field measurements.
Cat. No. DO-166-6S with 4 ft. cable
Cat. No. DO-166-15S with 15 ft. cable
Cat. No. DO-166-25S with 25 ft. cable
Cat. No. SM-166S Spare DO Membranes-
Package of 10 membranes
Cat. No. SF-166S Filling Solution
2 ounce bottle of filling solution.
| Item Number | Price |
|---|---|
| DO-166-6S | $850.00 |
| DO-166-15S | $860.00 |
| DO-166-25S | $860.00 |
| SM-166S | $65.00 |
| SF-166S | $65.00 |
Return Top of Page
Recieve additional information
How to Order
pO2 & pCO2 Micro Electrodes
The new pO2 probe can be used to measure pO2 of tissues, whole cells, cell fractions, and various types of respiration studies. It can also be used to measure dissolved oxygen in biological and environmental samples. The pCO2 probe can be used to measure pCO2 in blood, fermentation studies, and various tissues. The pO2 probe has a 2mm tip and a 6mm body diameter. The pC02 probe has a 9mm body diameter.
Ordering Information
DO-166MT-1 pO2 probeGS-136C0-1 pCO2 probe
| Item Number | Price |
|---|---|
| DO-166MT-1S | $995.00 |
| DO-136CO-1S | $970.00 |
Return Top of Page
How to Order
Recieve additional information
pO2 Needle Probe
The new pO2 needle probe that can be used directly with a strip chart recorder or pH meter to measure pO2 of various plant and animal tissue, cell cultures, and respiration studies. Unit comes complete with electronic signal conditioner for direct hookup to your recorder or pH meter.
Ordering Information
Order DO-166NPS p02 probe Price: $1295.00
Return Top of Page
Recieve additional information
How to Order
Micro Flow Through CO2 & pCO2 Electrodes
Features
- Use in Bioreactor, Cell Culture, and Organ Perfusion. pO2 System low volume (80 microliter) is ideally suited for in line monitoring of bioreactors, organ perfusion, and cell culture. pC02 volume is 100ul.
- Adapts to silastic tubing
- End fittings on pO2 & pCO2 probes attach directly to standard silastic tubing.
- Use with your pH meter
- pO2 & pCO2 probes plug directly into your pH meter.
- Continuous pO2 & CO2 monitoring using strip chart recorder.
Ordering Information
Model DO-166FTS flow though pO2 Probe
Model GS-136COFTS micro flow through CO2 probe
| Item Number | Price |
|---|---|
| DO-166FTS | $1195.00 |
| GS-136COFTS | $999.00 |
Return Top of Page
Recieve additional information
How to order
For specific questions or to receive printed literature, send your request by email to sales@lazarlab.com or call us at 1-800-824-2066, 001-323-931-1204 international, or fax us at 001-323-931-1434.
Contact us
How to place an order
Prices and specifications subject to change without notice.
